Metal dome membrane switch

Membrane keypad 16 pillow embossed keys with metal domes inside 6 colors Autotex F150 as graphic overlay 3M 467 as rear adhesuve

LGF membrane switch1 embossed key with metal dome inside2 colorsAutotex F150 as graphic overlay3M 467 as rear adhesiveLGF (light guide film) inside membrane switchFPC as below circuitryLGF (light guide film) membrane switch can offer bright and even backlighting with usual thickness of 1 mm or more; you can design custom lighting area for texts or keys

FPC membrane switch FPC as below circuitry Dome embossed keys with metal domes inside 2 colors Autotex F150 as graphic overlay 3M 467 as rear adhesive

Membrane Switch Pad 76 rim embossed keys with metal domes inside 6 colors Autotex F150 as graphic overlay 3M 467 as rear adhesuve

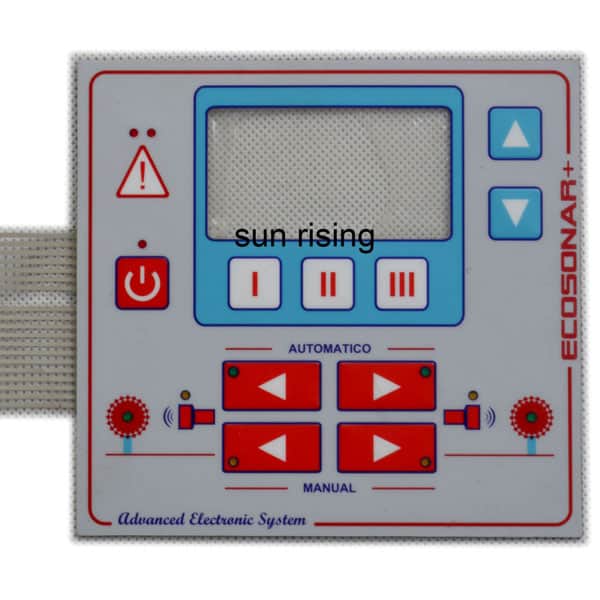

Standard membrane switch 4 colors, 10 pillow embossed keys with metal domes inside 11 LEDs Autotex F150 as graphic overlay 3M 467 as rear adhesive

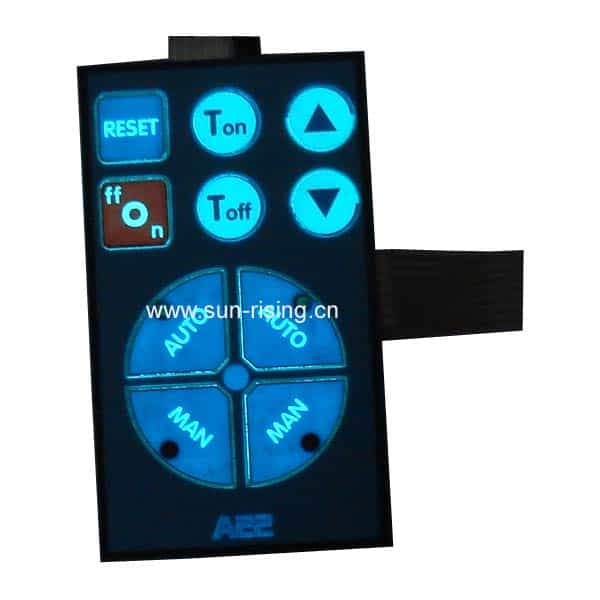

Electroluminescent membrane switch Insert EL sheet emboss 10 pillow keys with metal domes inside 4 LEDs inside 6 colors Autotex F150 as graphic overlay 3M 467 as rear adhesive

PCB membrane switch PCB as below circuitry 4 colors Autotex F150 as graphic overlay 3M 467 as rear adhesive 24 pillow embossed keys with metal domes inside 38 LEDs inside

Membrane Keypad 12 pillow embossed keys with metal domes inside 6 colors Autotex F200 as graphic overlay 3M 467 as rear adhesive

Membrane keypads Digital printing 4 pillow embossed keys with metal domes inside 6 LEDs inside Autotex F150 as graphic overlay 3M 467 as rear adhesive

Water proof membrane switch Extra gasket at below circuitry layer to prevent water flowing into membrane switch Reach water proof function grade of IP67 3 colors, 3 embossed keys with poly domes inside, 4 LEDs inside Autotex F150 as graphic overlay 3M467 as rear adhesive
