LED membrane switch

Standard membrane switch 4 colors, 10 pillow embossed keys with metal domes inside 11 LEDs Autotex F150 as graphic overlay 3M 467 as rear adhesive

Electroluminescent membrane switch Insert EL sheet emboss 10 pillow keys with metal domes inside 4 LEDs inside 6 colors Autotex F150 as graphic overlay 3M 467 as rear adhesive

PCB membrane switch PCB as below circuitry 4 colors Autotex F150 as graphic overlay 3M 467 as rear adhesive 24 pillow embossed keys with metal domes inside 38 LEDs inside

Membrane keypads Digital printing 4 pillow embossed keys with metal domes inside 6 LEDs inside Autotex F150 as graphic overlay 3M 467 as rear adhesive

Water proof membrane switch Extra gasket at below circuitry layer to prevent water flowing into membrane switch Reach water proof function grade of IP67 3 colors, 3 embossed keys with poly domes inside, 4 LEDs inside Autotex F150 as graphic overlay 3M467 as rear adhesive

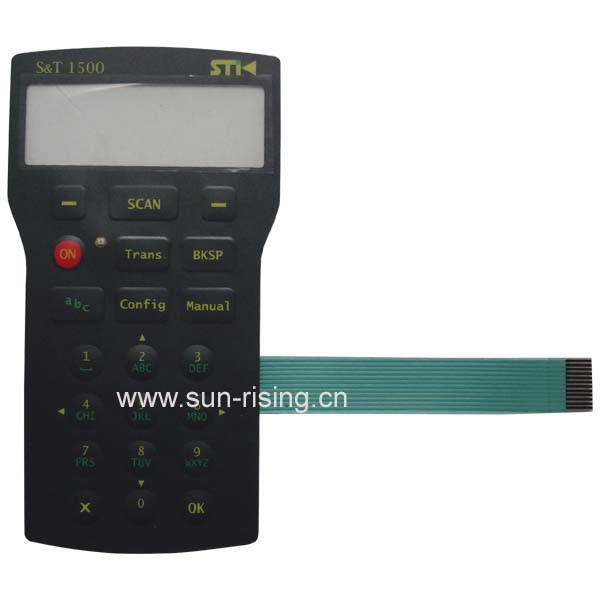

LED membrane switch 3 colors, 21 pillow or dome embossed keys with metal domes inside, 1 LED, Autotex F150 as graphic overlay, 3M 467 as rear adhesive. Glue single or bi-color LEDs on silver circuitry for LED membrane switch. LEDs come in a variety of colors such red, yellow, green. The LED window area is generally clear

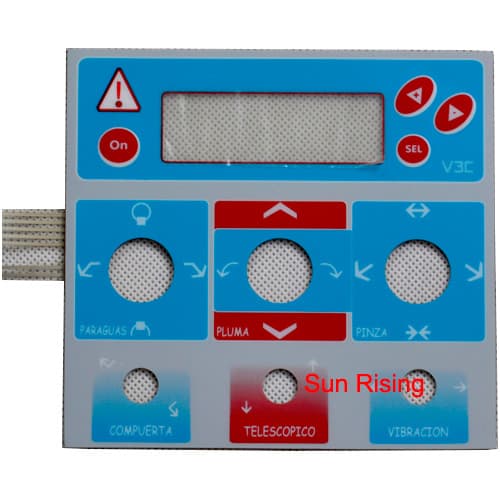

Membrane switch keyboard 4 colors, 4 pillow embossed keys with metal domes inside 1 LED Autotex F150 as graphic overlay 3M 467 as rear adhesive

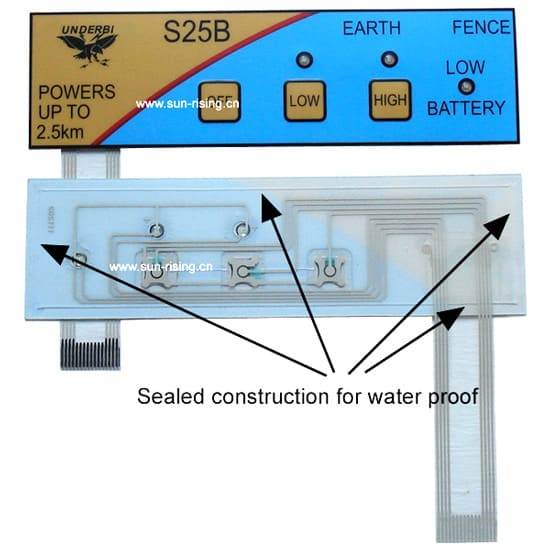

Sealed membrane switches Sealed structure with water proof function 3 pillow embossed keys with metal domes inside, 4 colors Autotex F150 as graphic overlay 3M467 as rear adhesive 3 LEDs inside

FPC membrane switch 2 pillow embossed keys with metal domes inside 5 LEDs inside 4 colors Autotex F150 as graphic overlay 3M467 as rear adhesive

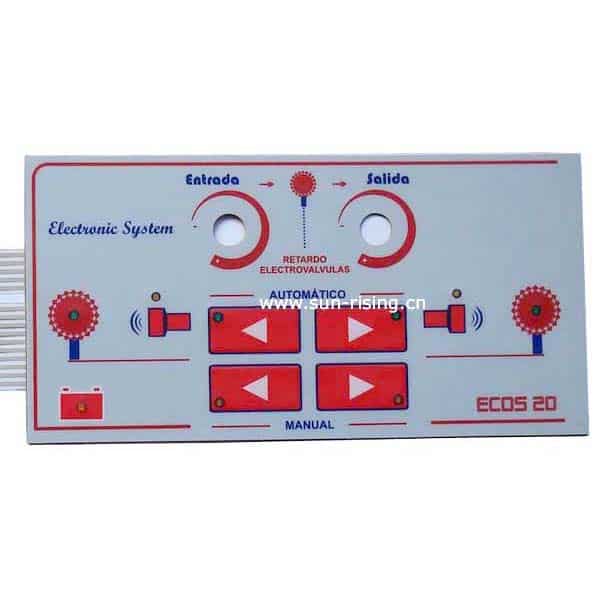

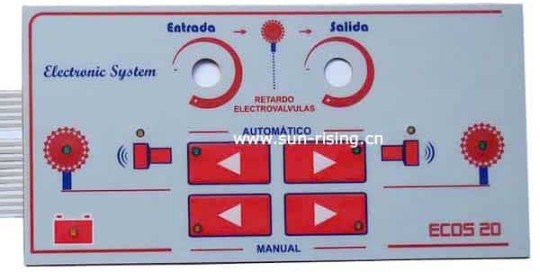

Specification for membrane panel switch:  Above membrane panel switch has 3 colors, 4 pillow embossed keys with metal domes inside and 9 LEDs. We use Autotex F150 as graphic overlay and 3M 467 as rear adhesive
